SKU: STC 0.5-10NN

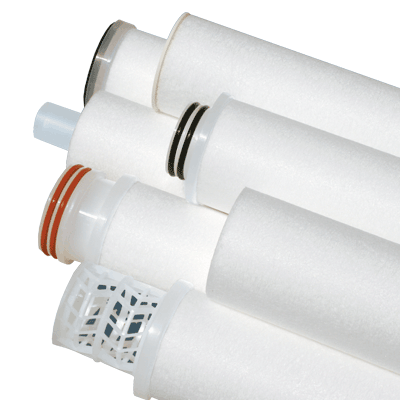

Graver Technologies Stratum C Series Filter Cartridge, 0.5 Micron, 10" Length, Cut Ends with No Gasket Seals

Shipping calculated at checkout.


Description

Graver Stratum C Series Melt Blown filters provide a high level of performance and precision for critical customer applications. The multi-zoned construction ensures true clarifying filtration without unloading any captured contaminants, making it an ideal solution across many industries - from chemicals to food & beverage production - with certifications such as USP Class VI Biological Test for Plastics, FDA Listed Materials compliancy and NSF 61 certification technology. Certifications: USP Class VI - Meets USP Class VI Biological Test for Plastics. FDA Listed Materials - All Materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5, and 177.1520, as applicable for food and beverage contact. NSF 61 - Certified to NSF/ANSI STD 61 for materials requirements only - Component. Typical Applications: Chemicals, Pharmaceuticals, Paint/Inks, Food and beverages, Water, Microelectronics, Plating, Cosmetics.

Benefits:

  • Multi-zone melt blown depth filter with a true graded porestructure
  • Thermally bonded fibers for high void volume and long on-stream life
  • Available in precise 90% removal efficiencies from 0.5 to 75 microns
  • 100% pure virgin polypropylene
  • Molded center core for higher temperature and pressure capability
  • Free of surfactants, binders and adhesives

Additional Info

Brand: Graver Technologies
Cartridge Diameter (in): 2-1/2 in
Cartridge End Type: None
Cartridge Length (in): 10 in
Cartridge Material: Polypropylene
Elastomer Material: No Gasket
Filter Cartridge Type: Depth Filter Cartridges
Filter Cartridges Series: Stratum C Series
Filtration Media: Polypropylene
Maximum Flow Rate (gpm): 8 GPM
Maximum Media Operating Temperature: 176°F
Micron Rating: 0.5
SKU: STC 0.5-10NN
