SKU: CMBF 5-30NN

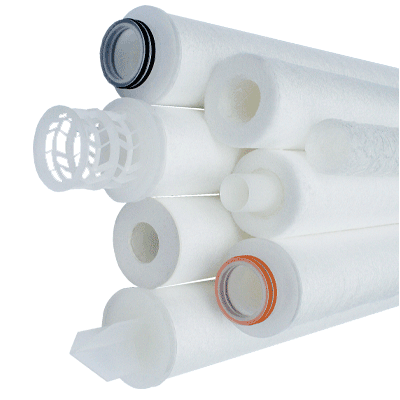

Graver Technologies Crystal MBF Series Filter Cartridge, 5 Micron, 30" Length, Cut Ends with No Gasket Seals

Shipping calculated at checkout.


Description

The Crystal MBF depth filter is an ideal solution for a number of applications, from reverse osmosis prefiltration to wastewater treatment. This disposable element provides maximum chemical compatibility with its 100% polypropylene media and won't collapse at elevated temperatures thanks to the built-in Crystal Core stabilizer. USP Class VI Biological Test certifications make it safe for food contact making this one versatile product! NSF 61 - Certified to NSF/ANSI STD 61 for materials requirements only - Component. Typical Applications: RO Prefilters, Wastewater, Food & beverage, Chemicals, Blowdown post filter, Rad waste, Aqueous solutions, Inks.

Benefits:

  • Available in nominal ratings from 1 to 75 microns
  • Formed Crystal Core for excellent collapse strength
  • Graded pore construction for long on-stream life
  • Melt blown media resists dirt unloading as differential pressure increases
  • Non-shedding
  • High dirt holding capacity
  • Economical depth filtration
  • Thermal bonded end caps optional
  • Free of binders, adhesives and surfactants
  • Highly consistent performance

Additional Info

Brand: Graver Technologies
Cartridge Diameter (in): 2-1/2 in
Cartridge End Type: None
Cartridge Length (in): 30 in
Cartridge Material: Polypropylene
Elastomer Material: No Gasket
Filter Cartridge Type: Depth Filter Cartridges
Filter Cartridges Series: Crystal MBF Series
Filtration Media: Polypropylene
Maximum Flow Rate (gpm): 24 GPM
Maximum Media Operating Temperature: 170°F
Micron Rating: 5
SKU: CMBF 5-30NN
