SKU: COAX 0.5-30P8S

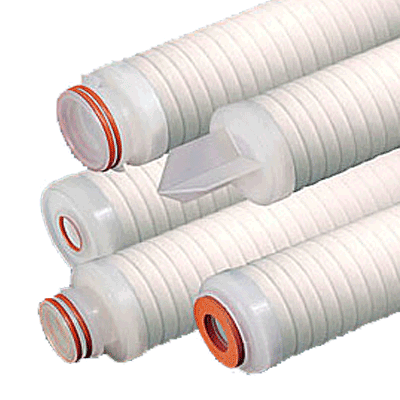

Graver Technologies COAX Series Filter Cartridge, 0.5 Micron, 30" Length, 222/Fin Single Open End with Silicone Seals

Shipping calculated at checkout.


Description

The COAX Depth Filter cartridge is the ultimate two-stage depth filter, providing superior dirt capacity and a longer useful life for an array of applications. Its first stage features nonwoven melt blown polypropylene to trap coarser particles while its second stage consists of high quality bicomponent polypropylene and polyethylene fiber that effectively retain finer elements. In addition, the rigid nature means there is no flexing of the cartridge and greatly reducing media migration and particle unloading.

Benefits:

  • Two stage depth filter
  • Maximum dirt holding and useful life
  • Inert pure polyolefin construction, non-shedding media
  • Broad chemical compatibility
  • Low extractables
  • Extensive range of lengths and configurations
  • Rigid construction resists unloading

Additional Info

Brand: Graver Technologies
Cartridge Diameter (in): 2.6 in
Cartridge End Type: 222 O-Ring,Fin Single Open End
Cartridge Length (in): 30 in
Cartridge Material: Polypropylene
Elastomer Material: Silicone
Filter Cartridge Type: Depth Filter Cartridges
Filter Cartridges Series: Coax Series
Filtration Media: Thermally bonded Polypropylene/polyethylene fiber
Maximum Flow Rate (gpm): 24 GPM
Maximum Media Operating Temperature: 140°F
Micron Rating: 0.5
SKU: COAX 0.5-30P8S
