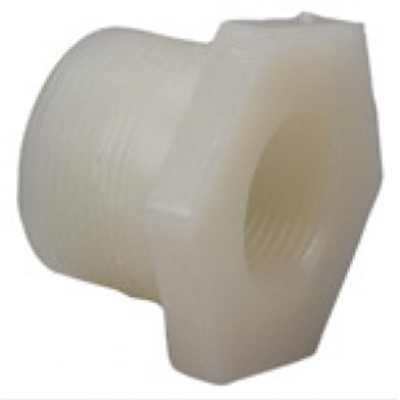

1" x 3/4" Bushing, Flush, Male NPT x Female NPT, Natural, PVDF, Schedule 80

The Chemtrol® flush thread reducer bushing is an injection molded natural Kynar® polyvinylidene fluoride (PVDF) thermoplastic fitting. Natural Kynar® fittings are ideal for use with ultra-pure water, deionized/distilled and demineralized water systems, clean chemical processes, pharmaceutical operations and food processing. The Chemtrol® flush thread reducing bushing features a male pipe thread and a female pipe thread connection. Chemtrol® PVDF fittings are lightweight, easy to install and maintenance-free. Chemtrol® fittings connect piping lengths together with thermo-seal fusion joining, threading or flanging to create a highly reliable, leak-free system. Chemtrol® Kynar® natural PVDF exhibits superior strength, working temperature and chemical resistance characteristics. Kynar® PVDF offers versatile chemical resistance to slats, strong acids, dilute bases and many organic solvents such as aromatics, aliphadics and chlorinated groups. PVDF is also ideally suited for handling wet or dry chlorine bromine and other halogens.

Chemtrol® premium line of plastic fittings is backed by a 1-year limited manufacturer warranty. Because Chemtrol® is a NIBCO brand the flow-control fittings are unsurpassed in quality, performance and longevity.

• Size range 3/4" to 2"
• Design stress of 1,360 psi at 73° F
• Maximum service temperature 280° F
• ASTM D3222 Type I material
• Male NPT thread by female NPT thread connection
• Not for use or testing with compressed air or other gases
• (1) year manufacturer warranty
