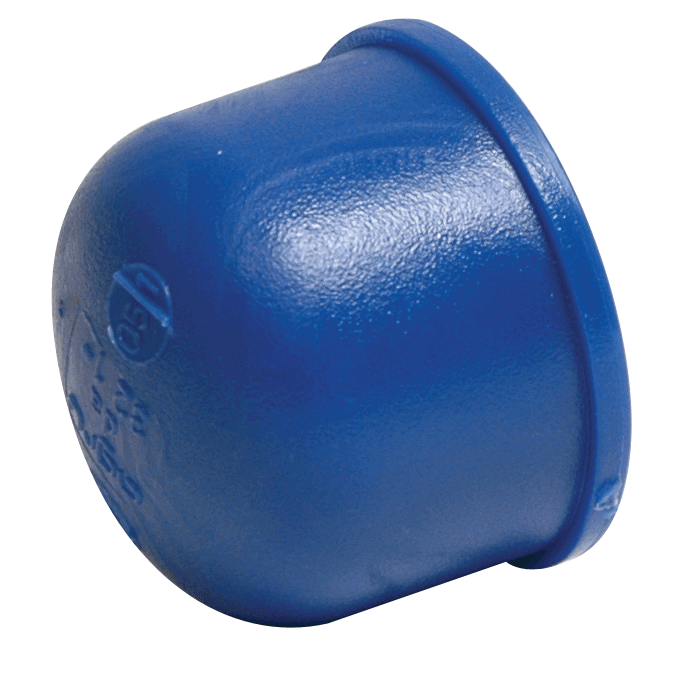

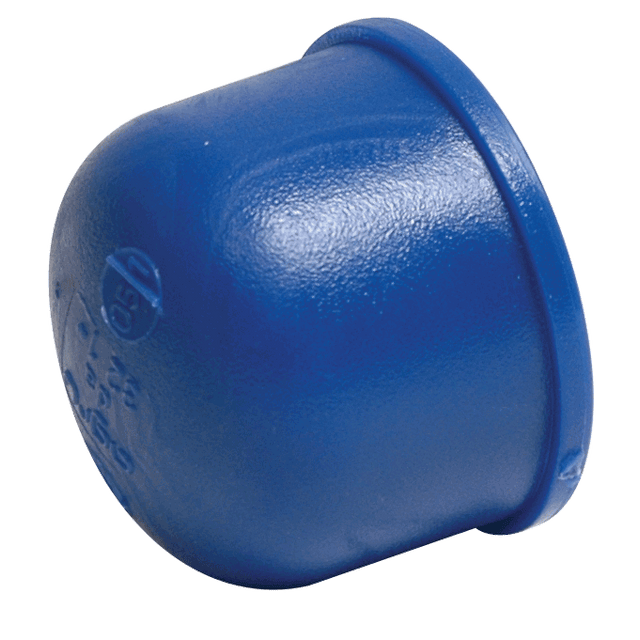

1" Cap Socket-Fusion Air-Pro

The Air-Proﾙ piping system is specifically constructed for compressed air. It has been extensively tested for safe operation in compressed air applications. Air-Proﾙ offers a safe, reliable system with the many advantages of thermoplastic construction. These include: convenient light weight material; faster/lower installation cost; more flexible installation; minimal system pressure drop; and corrosion resistance. Air-Proﾙ has been tested to meet the requirements of California OSHA for thermoplastics in compressed gas applications.

• Materials: Eltex TUB 124, High Density Polyethylene, ,Blue Color Code (ﾽ-4"), Black Color (6-12"), Blue coded may be available upon request
• Temp Limits: Up to 140ﾰF
• Pressure Range: 230 psi at 70ﾰF 20-110mm (ﾽ-4") Socket Fusion,150 psi at 70ﾰF 160-315mm (6-12") Butt & Electro-Fusion
• Joining Method: Socket Fusion 20-110mm (ﾽ-4"), Electro-Fusion 160-315mm (6-12"), Butt Fusion 160-315mm (6-12")
• Resistance to Mineral and Synthetic Compressor Oil
