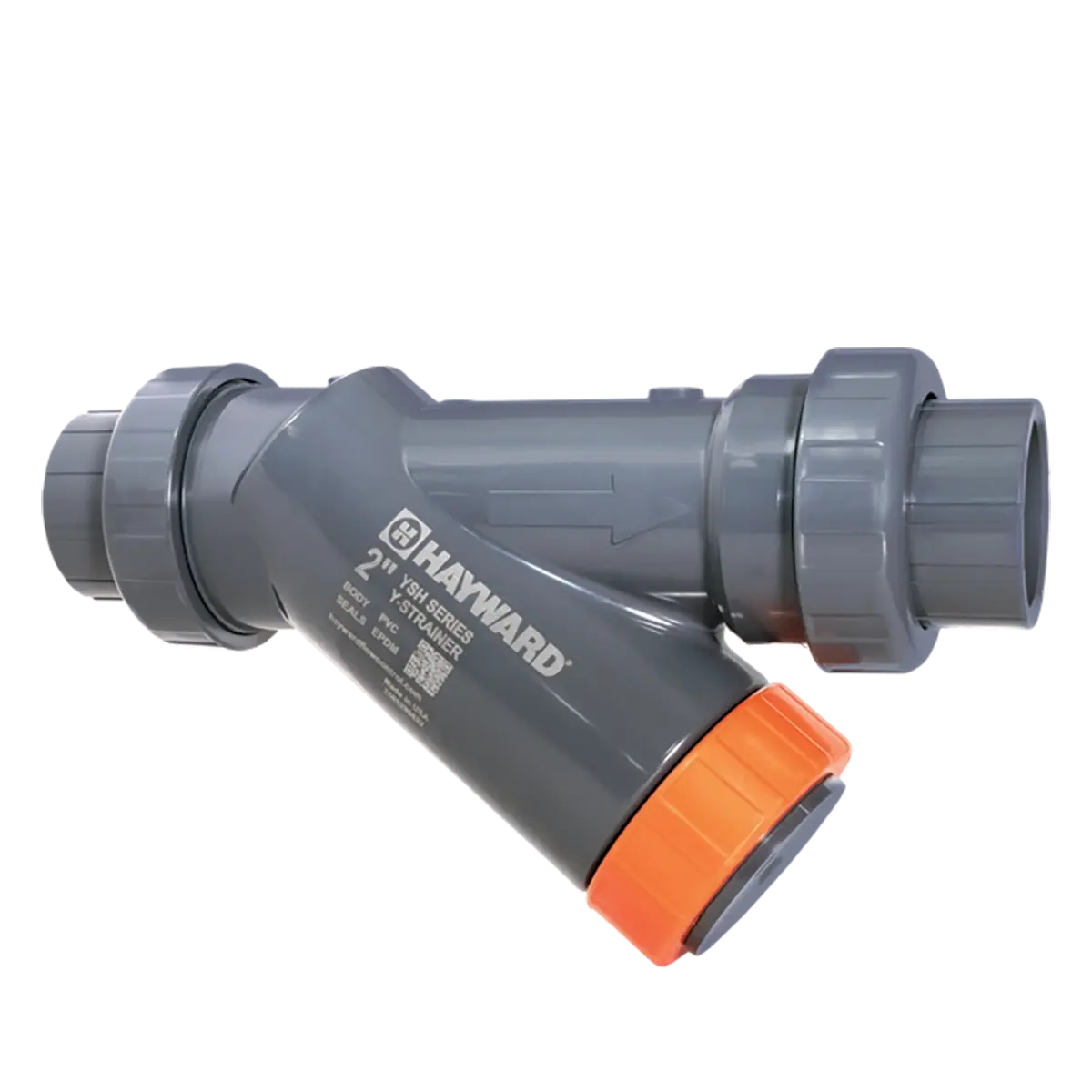

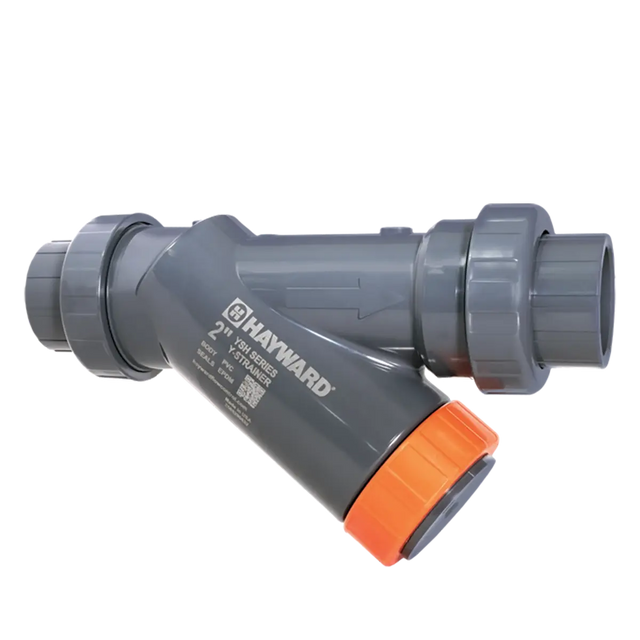

YSH Series 2" PVC Y-Strainer — True Union Socket & Threaded Ends, FPM (Viton®) Seal
Hayward YSH 2" PVC Y-Strainer with True Union Socket & Threaded Ends
This 2" Hayward YSH Series Y-Strainer combines reliable particulate removal with a compact, serviceable design built for commercial and industrial filtration systems. The body is molded from PVC (PVC Cell Class 12454 per ASTM D1784) (PVC end connections), paired with a PVC straining basket and FPM (Viton®) o-ring seals.
Constructed from durable PVC, this strainer delivers excellent chemical resistance across a broad range of acids, bases, and salt solutions commonly found in industrial and commercial water treatment systems.
True union socket and threaded connections on both ends enable fast removal for cleaning or replacement without disturbing adjacent piping — a significant advantage in systems that require frequent maintenance.
Sealed with FPM (Viton®) o-rings for superior resistance to fuels, oils, solvents, and concentrated chemicals — the preferred option for aggressive chemical handling applications.
Specifications
| Pipe Size | 2" |
| Body Material | PVC |
| Screen/Basket Material | PVC |
| End Connections | True Union Socket & Threaded |
| Seal Material | FPM (Viton®) |
| Cv (Flow Coefficient) | 28.0 |
| Max Pressure | 150 PSI @ 70°F |
| Screen Perforation Options | 1/16", 1/32", 1/8", 3/16" |
Design Highlights
The YSH Series features exterior buttress threads and a pressure-relieving chamfered barrel nut for safer servicing. An optional hex cap provides tool-assisted screen access, while pre-drilled cap taps accommodate blow-out or gauge ports. Clear PVC screen inserts are available for visual monitoring. Suitable for horizontal or vertical mounting. Optional mesh screens (20–325 mesh) offered in stainless steel, PVDF, Hastelloy, titanium, and Monel for specialized filtration needs.
