YSH Series 1" Clear PVC Y-Strainer — True Union Socket & Threaded Ends, EPDM Seal

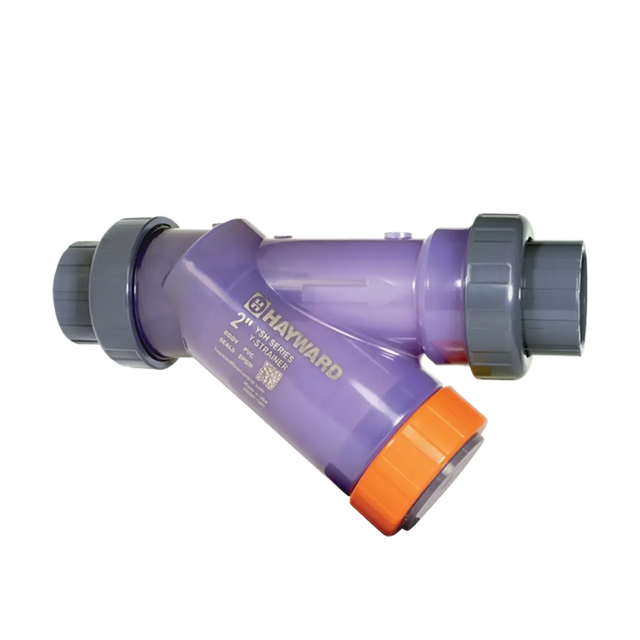

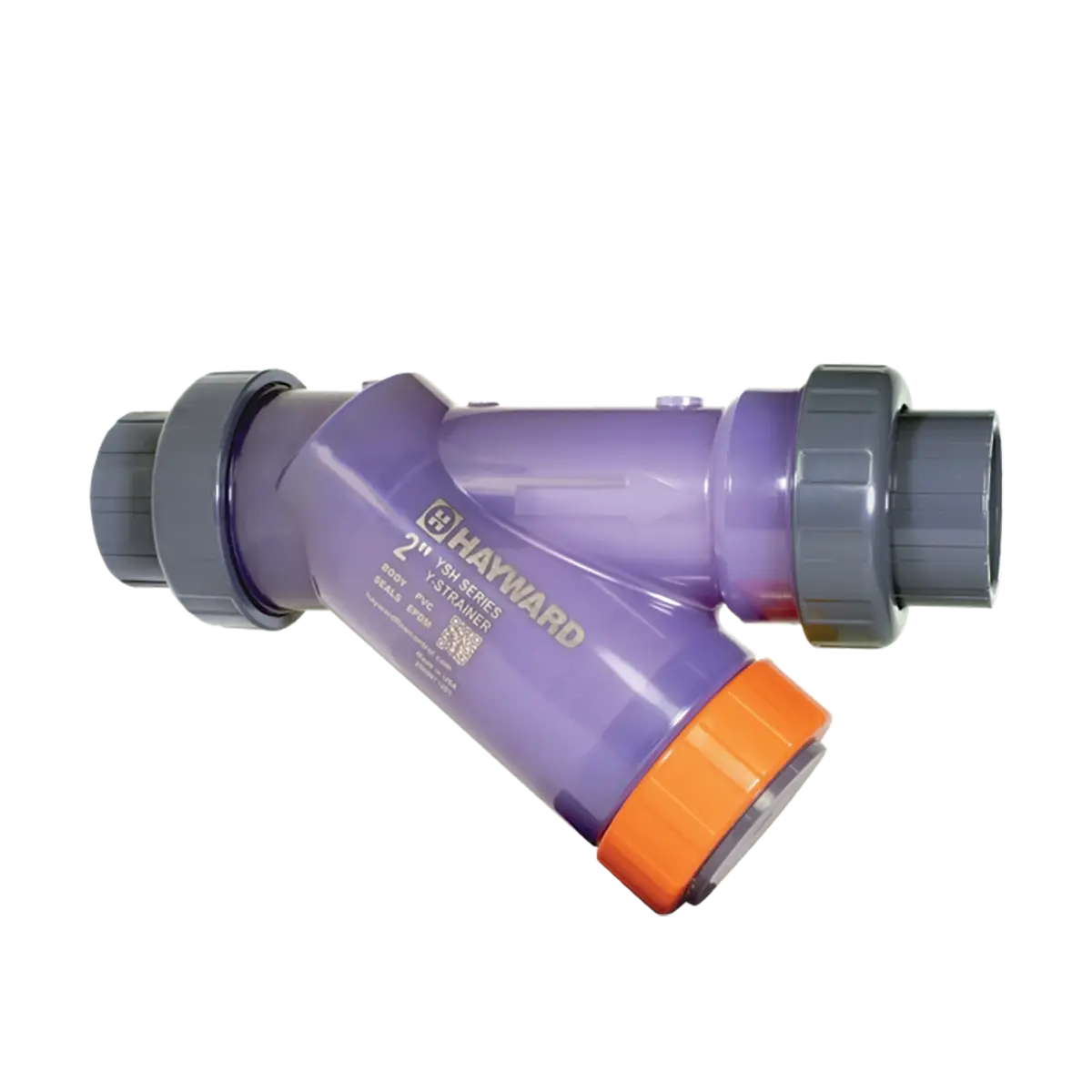

Hayward YSH 1" Clear PVC Y-Strainer with True Union Socket & Threaded Ends
This 1" Hayward YSH Series Y-Strainer combines reliable particulate removal with a compact, serviceable design built for commercial and industrial filtration systems. The body is molded from Clear PVC (Clear PVC Cell Class 12454 per ASTM D1784) (PVC end connections), paired with a PVC straining basket and EPDM o-ring seals.
The transparent Clear PVC construction allows operators to visually monitor flow conditions and screen buildup without disassembly, reducing downtime during maintenance checks.
True union socket and threaded connections on both ends enable fast removal for cleaning or replacement without disturbing adjacent piping — a significant advantage in systems that require frequent maintenance.
Sealed with EPDM o-rings, which offer broad compatibility with water, dilute acids, and alkaline solutions — a versatile choice for most water treatment and general industrial environments.
Specifications
| Pipe Size | 1" |
| Body Material | Clear PVC |
| Screen/Basket Material | PVC |
| End Connections | True Union Socket & Threaded |
| Seal Material | EPDM |
| Cv (Flow Coefficient) | 9.0 |
| Max Pressure | 150 PSI @ 70°F |
| Screen Perforation Options | 1/16", 1/32", 1/8", 3/16" |
Design Highlights
The YSH Series features exterior buttress threads and a pressure-relieving chamfered barrel nut for safer servicing. An optional hex cap provides tool-assisted screen access, while pre-drilled cap taps accommodate blow-out or gauge ports. Clear PVC screen inserts are available for visual monitoring. Suitable for horizontal or vertical mounting. Optional mesh screens (20–325 mesh) offered in stainless steel, PVDF, Hastelloy, titanium, and Monel for specialized filtration needs.
