YSH Series 1-1/4" CPVC Y-Strainer — True Union Socket & Threaded Ends, EPDM Seal

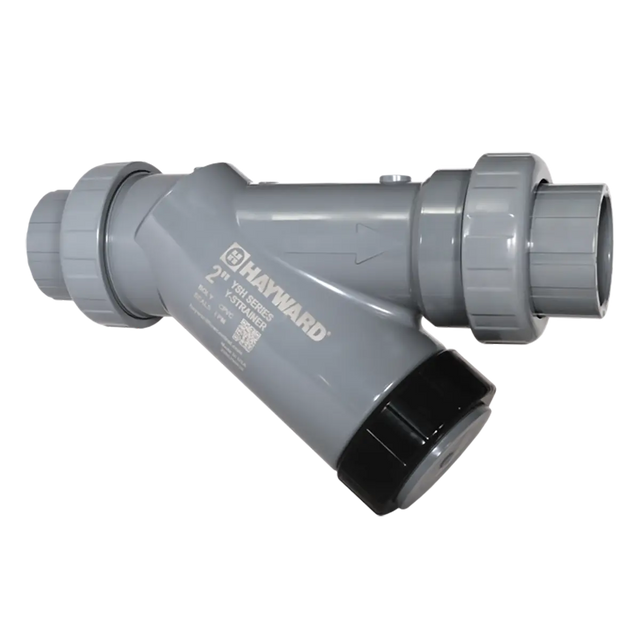

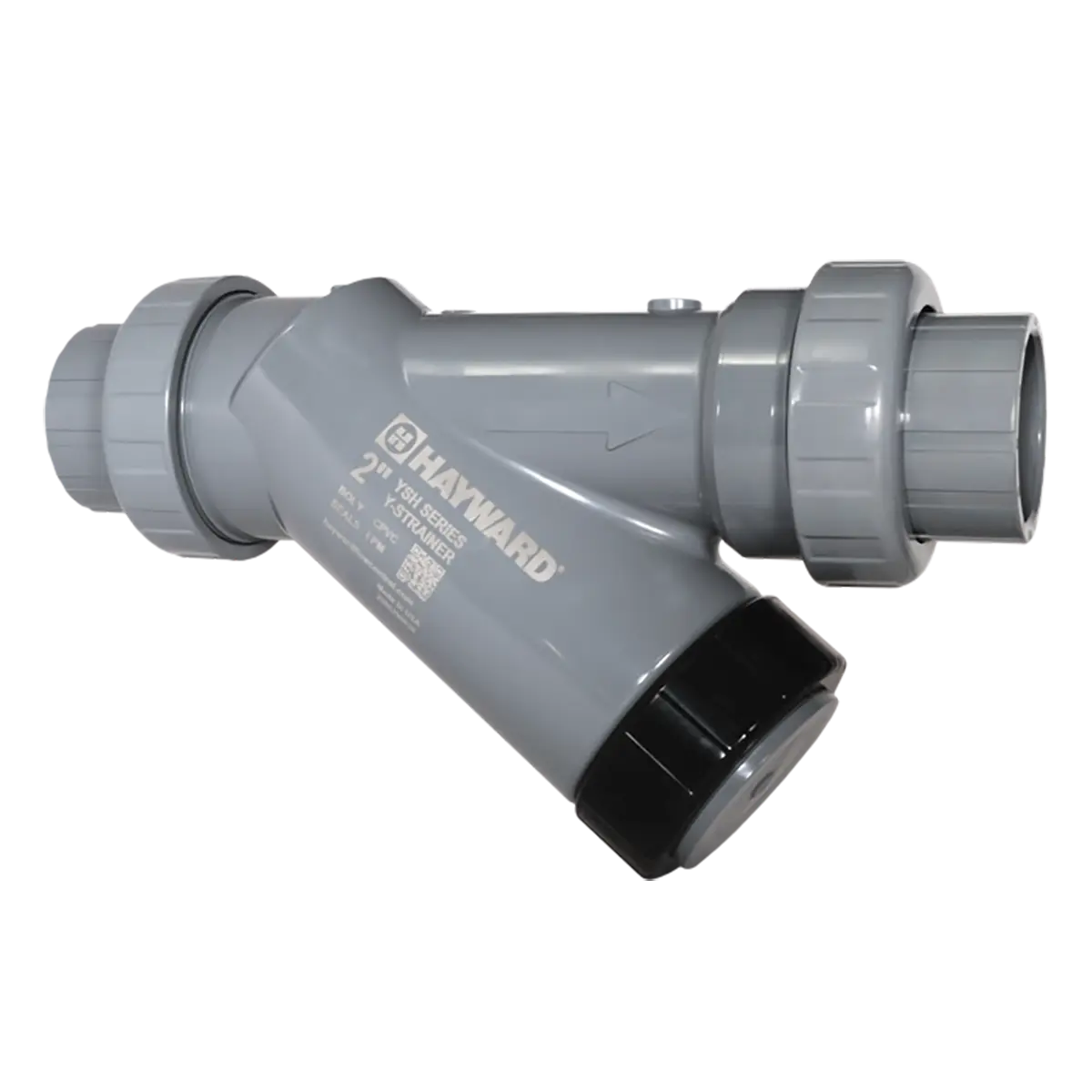

Hayward YSH 1-1/4" CPVC Y-Strainer with True Union Socket & Threaded Ends
This 1-1/4" Hayward YSH Series Y-Strainer combines reliable particulate removal with a compact, serviceable design built for commercial and industrial filtration systems. The body is molded from CPVC (CPVC Cell Class 23447 per ASTM D1784) (CPVC end connections), paired with a CPVC straining basket and EPDM o-ring seals.
Engineered with CPVC for elevated temperature service, this strainer handles higher operating temperatures than standard PVC while maintaining strong chemical resistance for demanding process applications.
True union socket and threaded connections on both ends enable fast removal for cleaning or replacement without disturbing adjacent piping — a significant advantage in systems that require frequent maintenance.
Sealed with EPDM o-rings, which offer broad compatibility with water, dilute acids, and alkaline solutions — a versatile choice for most water treatment and general industrial environments.
Specifications
| Pipe Size | 1-1/4" |
| Body Material | CPVC |
| Screen/Basket Material | CPVC |
| End Connections | True Union Socket & Threaded |
| Seal Material | EPDM |
| Cv (Flow Coefficient) | 12.0 |
| Max Pressure | 150 PSI @ 70°F |
| Screen Perforation Options | 1/16", 1/32", 1/8", 3/16" |
Design Highlights
The YSH Series features exterior buttress threads and a pressure-relieving chamfered barrel nut for safer servicing. An optional hex cap provides tool-assisted screen access, while pre-drilled cap taps accommodate blow-out or gauge ports. Clear PVC screen inserts are available for visual monitoring. Suitable for horizontal or vertical mounting. Optional mesh screens (20–325 mesh) offered in stainless steel, PVDF, Hastelloy, titanium, and Monel for specialized filtration needs.
