YSH Series 1-1/2" PVC Y-Strainer — True Union Flanged Ends, EPDM Seal

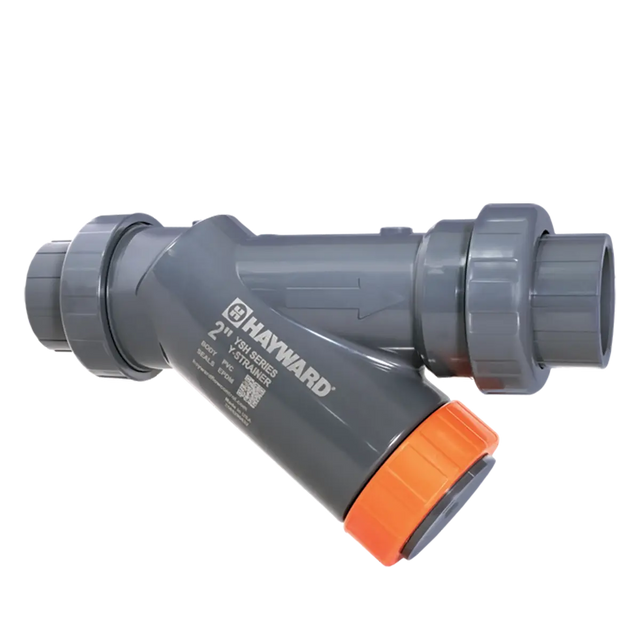

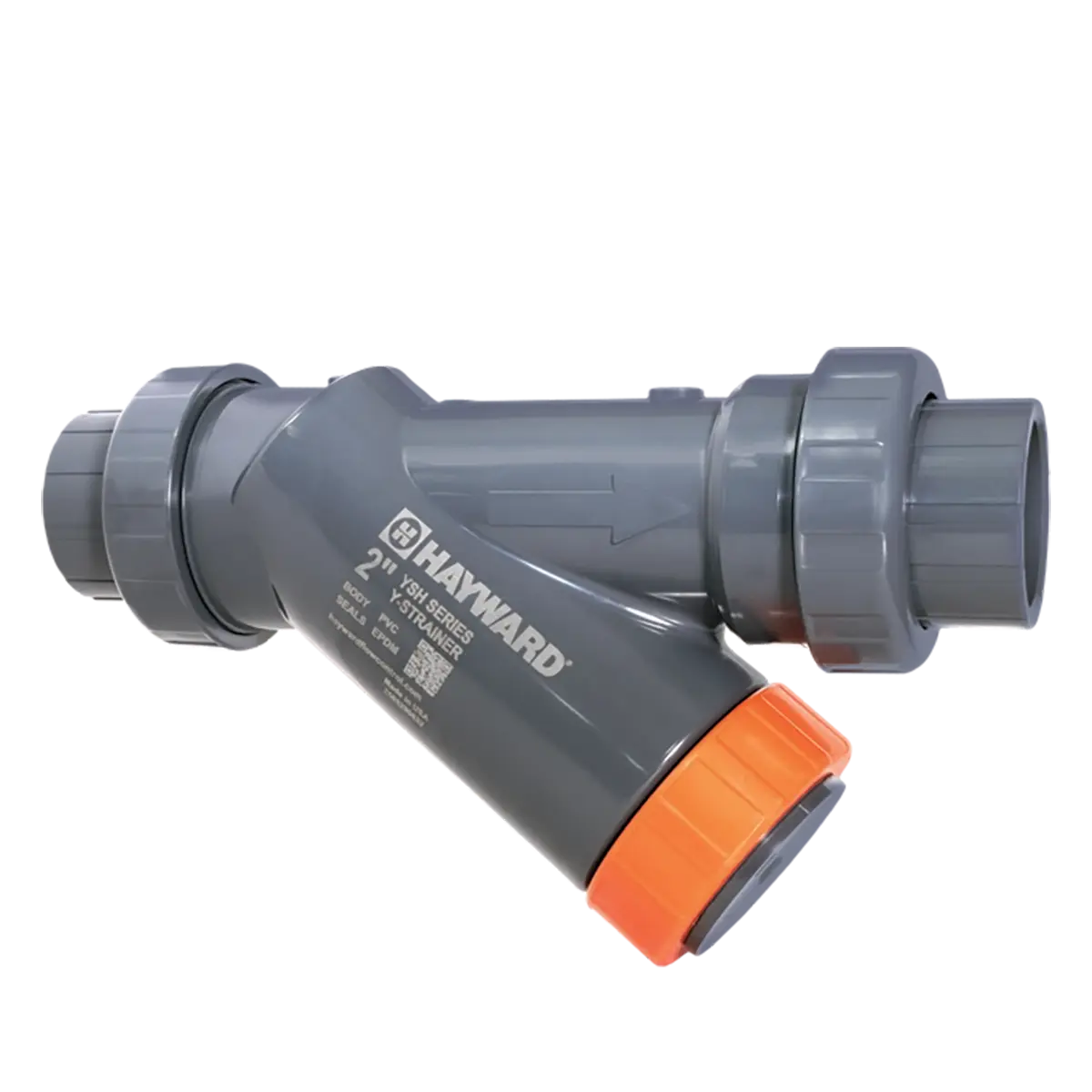

Hayward YSH 1-1/2" PVC Y-Strainer with True Union Flanged Ends
This 1-1/2" Hayward YSH Series Y-Strainer combines reliable particulate removal with a compact, serviceable design built for commercial and industrial filtration systems. The body is molded from PVC (PVC Cell Class 12454 per ASTM D1784) (PVC end connections), paired with a PVC straining basket and EPDM o-ring seals.
Constructed from durable PVC, this strainer delivers excellent chemical resistance across a broad range of acids, bases, and salt solutions commonly found in industrial and commercial water treatment systems.
True union flanged connections provide bolt-on installation and easy in-line removal, well suited for larger process lines and systems where ANSI-compatible flanged connections are standard.
Sealed with EPDM o-rings, which offer broad compatibility with water, dilute acids, and alkaline solutions — a versatile choice for most water treatment and general industrial environments.
Specifications
| Pipe Size | 1-1/2" |
| Body Material | PVC |
| Screen/Basket Material | PVC |
| End Connections | True Union Flanged |
| Seal Material | EPDM |
| Cv (Flow Coefficient) | 28.0 |
| Max Pressure | 150 PSI @ 70°F |
| Screen Perforation Options | 1/16", 1/32", 1/8", 3/16" |
Design Highlights
The YSH Series features exterior buttress threads and a pressure-relieving chamfered barrel nut for safer servicing. An optional hex cap provides tool-assisted screen access, while pre-drilled cap taps accommodate blow-out or gauge ports. Clear PVC screen inserts are available for visual monitoring. Suitable for horizontal or vertical mounting. Optional mesh screens (20–325 mesh) offered in stainless steel, PVDF, Hastelloy, titanium, and Monel for specialized filtration needs.
