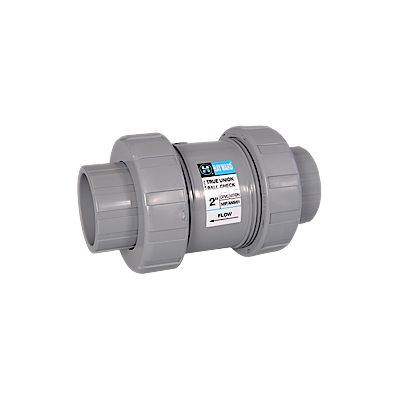

1-1/2" Hayward TC True Union CPVC Check Valve, Socket/Threaded End, FPM Seats/O-Rings

Hayward series TC true union ball check valves are ideal for applications where there is potential for backflow damage to process equipment, pumps or filters. Series TC can be horizontally or vertically installed and features a free floating ball that never seats in the same position twice. The special square cut of the seat allows for positive sealing, halting backflow. Series TC is offered in PVC, CPVC, and PP with either FPM O-rings and seats or EPDM O-rings and seats. Sizes 1/4" to 3/8" are offered in only PVC with FPM seats and seals in either socket or threaded end connections in trim check design (Non-True Union). 1/2" to 2" sizes are offered in PVC and CPVC with socket and threaded or flanged end connections and either FPM or EPDM seats and seals in sure block design. 1/2" to 2" PP sizes have FPM or EPDM seats and seals and are offered with only threaded end connections in sure block design. 2-1/2" to 4" sizes are offered in PVC or CPVC only in both FPM and EPDM seats and seals with socket, threaded or flanged end connections in sure block design. The 6" size is offered in PVC or CPVC with FPM or EPDM seats and seals in only flanged end connections in sure block design. Foot valve screens are available as an option for series TC.

TC series valves are ideal for the following applications:

• Water/wastewater treatment
• Chemical Processing
• Food/Beverage
• Swimming pools/water parks
• Aquaculture
• Aquarium/zoo service
• Pharmaceutical
• Pulp/paper
• Landfill service
• Marine/corrosive environments
• Metal finishing/plating

• 1/4" to 3/8" are trim check design
• 1/2" to 6" are sure block design
• Full port in sizes 1/4" to 4"
• PVC, Corzan® CPVC and PP
• Horizontal or vertical installation
• Square cut seat for positive sealing
• Seats with minimum back pressure
• NSF/ANSI 61
