SKU: RTEC 75-19.50NN

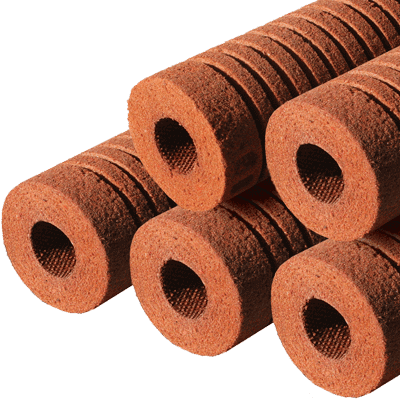

Graver Technologies RTEC P Series Filter Cartridge, 75 Micron, 19-1/2" Length, Cut End with No Gasket Seals

Shipping calculated at checkout.


Description

The RTEC P Series filters are constructed with an innovative combination of polyester fiber and phenolic resin for a truly rigid structure. This allows the filter to maintain its integrity in extreme conditions, even those involving high viscosity or temperature changes. Its unique graded density construction provides maximum efficiency by trapping coarse particles closer to the surface and finer particles near the core - making it ideal for any application from paints & varnishes to fuel oils & animal fats. Typical Applications: Paints, Inks, Sealants, Adhesives, Lacquers, Varnishes, Shellacs, Fuel Oils, Crude Oils, Grease, Machine Coolants, Silicones, Antifreeze, Plasticizers, Animal Oils.

Benefits:

  • Rigid polyester fiber/phenolic resin construction prevent sunloading even at high differential pressures
  • Grooved outer surface increases surface area for longer on-stream life
  • Available in a wide range of removal efficiencies from 1 to 100 microns
  • Available with optional end configurations for installation in most housings
  • No metal or plastic cores for easier disposal
  • Broad chemical compatibility

Additional Info

Brand: Graver Technologies
Cartridge Diameter (in): 2.45 in
Cartridge End Type: None
Cartridge Length (in): 19-1/2 in
Cartridge Material: Polyester
Elastomer Material: No Gasket
Filter Cartridge Type: Specialty Filter Cartridges
Filter Cartridges Series: RTEC P Series
Filtration Media: Polyester Fiber/Phenolic Resin
Maximum Flow Rate (gpm): 16 GPM
Maximum Media Operating Temperature: 200°F
Micron Rating: 75
SKU: RTEC 75-19.50NN
