SKU: MBC 5-40DBG

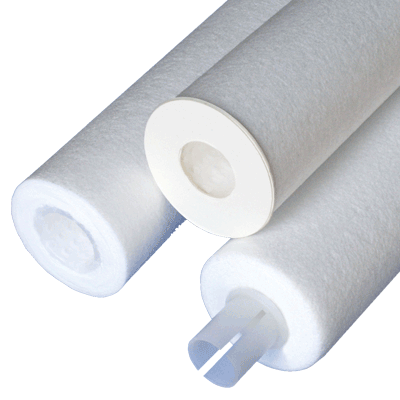

Graver Technologies MBC Series Filter Cartridge, 5 Micron, 40" Length, Direct Bond Gaskets with Seals

Shipping calculated at checkout.


Description

The MBC Depth Filter is an economical and disposable solution for a variety of applications. Constructed from 100% polypropylene, the filter wont collapse even at high temperatures due to its molded core design. It also meets FDA compliance requirements so it can be used in various food & beverage processes as well as chemicals, ink production and more! FDA listed materials: All polypropylene material used in manufacturing complies with the regulations of the Food and Drug Administration (FDA) title 21 of the Code of Federal Regulations Sections 174.5, 177.1520, and 177.1630, as applicable for food and beverage contact. Applications: RO Prefilters, Wastewater, Food & beverage, Chemicals, Blowdown post filter, Rad waste, Aqueous solutions, Ink.

Benefits:

  • Available in nominal ratings from 1 to 75 microns
  • Graded pore construction for long on-stream life
  • Melt blown media resists dirt unloading as differential pressure increases
  • Non-shedding
  • High dirt holding capacity
  • FDA listed polypropylene media
  • Economical depth filtration
  • Thermal bonded end caps optional
  • Free of binders, adhesives and surfactants
  • Certified to NSF/ANSI 61 as drinking water system components*

Additional Info

Brand: Graver Technologies
Cartridge Diameter (in): 2-1/2 in
Cartridge End Type: Direct Bond Santoprene Gaskets
Cartridge Length (in): 40 in
Cartridge Material: Polypropylene
Elastomer Material: Santoprene
Filter Cartridge Type: Depth Filter Cartridges
Filter Cartridges Series: MBC Series
Filtration Media: Polypropylene
Maximum Flow Rate (gpm): 32 GPM
Maximum Media Operating Temperature: 176°F
Micron Rating: 5
SKU: MBC 5-40DBG
