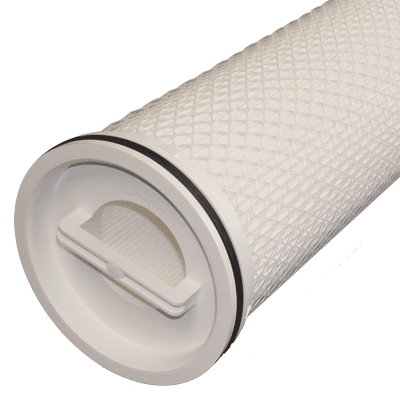

Graver Technologies High Flow GF Series Filter Cartridge, 20 Micron, 60" Length, N/A with EPDM Seals

Graver High Flow GF Series filters offer a more efficient filtration solution for applications such as fuel oil, chemicals, petrochemicals, solvents and the Oil & Gas industries. The microfiberglass media in larger geometry optimizes high flow rates with fewer filter elements - resulting in faster changeouts of spent cartridges. Inside-to-outside airflows create superior dirt holding capacity so you can enjoy longer time periods between replacements while small filter housing footprints reduce upfront capital costs! Typical Applications: Fuel Oil, Chemicals, Petrochemicals, Solvents, Oil & Gas.

Benefits:

• Materials of construction allow compatibility with some chemistries not served by all polypropylene elements.
• 6" diameter, large geometry for high flows
• Absolute retention ratings from 1 to 20 microns
• Capable of flowrates up to 500 GPM in a single 60" element
• Inside-outflow retains contaminant even during change out
• Outer cage prevents media extrusion problem experienced with some competitive offerings
• Unique Quad Seal gasket provides maximum seal integrity
• Retrofits competitive high flow filter housings
• Thermally bonded construction
